Your Bulk Handling Solution

Choose your product

Showing all 3 results

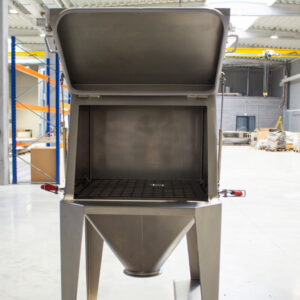

Bag emptying hopper for good flowability product

Bag emptying hooper for good flowability product

ISERCO offers a wide range of custom-made bag hoppers that are adapted to the needs of each industry sector and to the demands of our customers.

The composition of a bag hopper without options is as follows:

  • An access door on gas cylinders with inductive sensors secured by two locks. This system avoids any sudden closing of the door.
  • A support shelf to facilitate bag placement
  • A bag emptying chamber with removable grid
  • A square/circular hopper allows the elimination of product retention in the corners of conventional square hoppers.

The options available for a bag emptying hopper for emptying a product with a good flowability are :

  • A handle for maneuvering
  • A mechanical lump breaker to break up the clods that have formed during storage in bags
  • Handling wheels
  • An empty bag evacuation system
  • Process connection system operation
Empty bag hopper with a vibration systemBag emptying hopper with a vibrating system

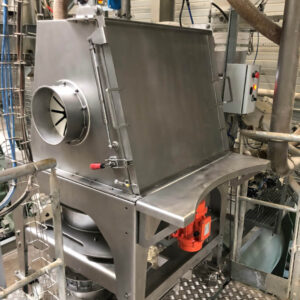

Bag emptying hooper for poor flowability product

Poor flowability of a bagged product is usually caused by its cohesive and clogging nature.
It can also be caused by the humid environment in which the bags are stocked before unpacking.

There are 2 types of bag emptying hoppers: the bag emptying hopper alone and the bag emptying hopper integrated into a big bag emptying system which is able to receive 2 forms of containers: the big bag and the bag emptying system.

The bag hopper is used to empty bulk products conditioned in bags.
ISERCO offers a wide range of custom-made bag emptying hoppers, which are adapted to the requirements of the industry and the needs of our customers.

When a product contained in a bag has poor flowability, ISERCO offers solutions to help its discharge. In fact, the bag emptying hopper has several options to facilitate the emptying of the bag.

The following options are available:

  • A suction and cleaning system
  • A vibration system for easy product flow.
  • Fishtails inside the hopper

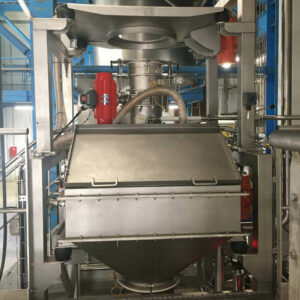

The bag emptying hopper, integrated into the big bag emptying station, is designed to empty the bags manually. The cover is held by gas cylinders. It is equipped with a dust exhaust connection or for connection of a filter bag, and a high-level probe. The bag emptying hopper is placed under a vibrating hopper, which is isolated from it to avoid resonance. The vibrated hopper allows for easy product extraction.

ISERCO empty-bag hoppers are made of stainless steel.

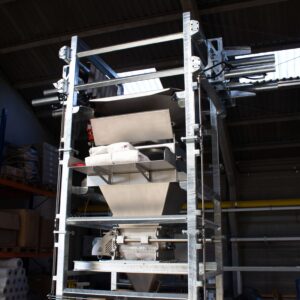

Station de vidange avec trémie vide-sac

Station de vidange avec trémie vide-sac

Station de vidange avec trémie vide-sac

ISERCO propose une large gamme de vide-sacs. Certaines stations de vidange permettent d’accueillir les 2 formes de contenants : le Big Bag et le sac.
Cette station permet de vidanger des big bags et des sacs indépendamment dans une même trémie. Il peut s’agir d’une trémie tampon, équipée d’un extracteur à fond plat évitant tout phénomène de voûtage, tout en éliminant les mottes du produit.
La trémie vide-sac est placée en dessous de la trémie vibrée, mais est isolée de celle-ci afin d’éviter qu’elle rentre en résonnance.

L’avantage majeur de la station de vidange de big bag avec l’intégration d’une trémie vide-sac est assurément, le fait qu’il s’agit d’un équipement 2 en 1. Il permet de vidanger les big bags et les sacs en même temps sans avoir besoin de 2 appareils distincts pour ces opérations de vidange.
