Your Bulk Handling Solution

Choose your product

Showing all 3 results

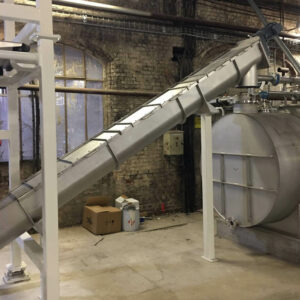

Iserco Archimedean screw

Archimedean screw

Archimedean screw

ISERCO designs custom-made Archimedean screws adapted to each project.
The Archimedean screw allows the transfer of powders or pellets from point A to point B. This transfer can also be vertical with limited
inclinations at 45 °.
The screws can be installed under storage silos, Big Bag emptying stations, or bag emptying hoppers.
Archimedean screws are generally made of stainless steel but can also be made of galvanized steel.
This device is composed of a tubular or trough-shaped casing. Archimedean screw conveyors can be equipped, according to the needs, with solid spiral rotors, ribbon spiral rotors, pallet spiral rotors, or core threads.
The benefits of an Archimedean Screw :

  • Reliable equipment
  • Simple design
  • Minimal wear
  • Requires minimal maintenance
  • High efficiency

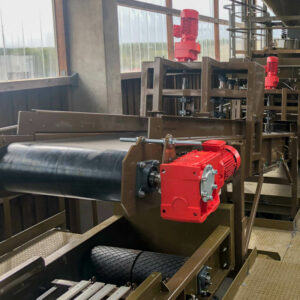

Belt conveyor ISERCO

Belt conveyor

Belt conveyor

The belt conveyor is a fast transfer system, capable of conveying high product flow rates.
Its structure can be made of galvanized steel or carbon steel.

It is generally made up of:

  • a rubber belt (smooth, rough…)
  • rolls
  • a drive drum
  • a motor and a reducer with a frequency inverter

The unit can be enclosed and have a trap door for inspection.
Belt conveyors are available in various lengths and widths.
Installed horizontally or in an inclined position, it can be easily integrated into many production site configurations.
Its functioning is uncomplicated, and its maintenance is fast.
It requires only a low amount of energy to operate because the system has a low voltage.

It is a robust powder conveying system that is easy to maintain and replace damaged parts quickly.

transport pneumatique iserco

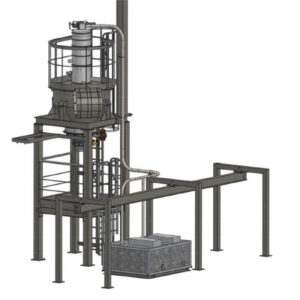

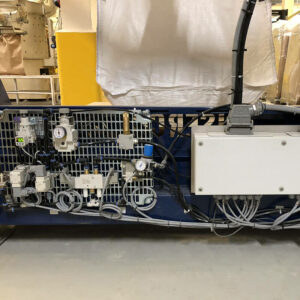

Pneumatic transport

Pneumatic transport

Pneumatic conveying works with compressed air, which creates a vacuum in order to suck in air and powdered product. The product is transferred in a pipe from container A to container B.
The suction time is managed by a device called a “pneutimer”.
Pneumatic conveying is usually integrated into big bag emptying stations and hoppers.

The benefits of this system :

  • It is easy to set up
  • It is easier to clean than an Archimedean screw system for example
  • It requires low maintenance
  • It takes up little space in the installation
  • It is clean and easy to clean, which makes it a solution of choice in the pharmaceutical or food industry
  • It is simple to start up for the operator
  • It is part of a system controlled by automatism.
  • The absence of friction prevents the product from being damaged during the transfer
