Lump breaker ISERCO

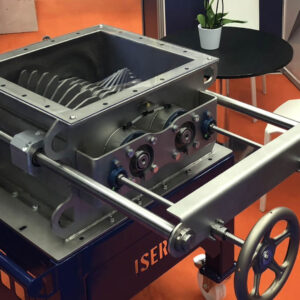

Lump-breaker with quick disassembly

Lump-breaker with quick disassembly

The lump breaker is used to reduce the particle size of products that tend to form lumps. The lump breaker allows the product to be fluidized.

The lump breaker is integrated under the sealing and pre-transport system.
It is available in different sizes, from the diameter 300 to the diameter 1000 mm and it can process a large quantity of product.

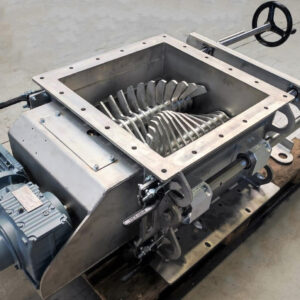

This lump breaker can be partially or totally disassembled for a quick access to the shafts for cleaning. Thus, the inside of the lump breaker can be completely cleaned without having to dismantle the whole unit. The primary and secondary shafts are accessible via the dismantling flange. In the same way, the seals can be changed without having to dismantle the entire system.

This device is particularly appreciated by the food industry which is governed by hygiene standards to be respected.

The ISERCO lump breakers are made of steel or stainless steel.

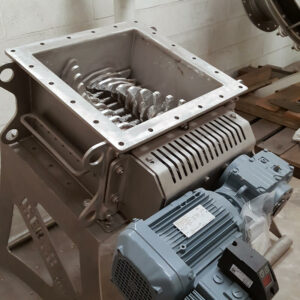

Double shaft lump breaker- stainless Steel

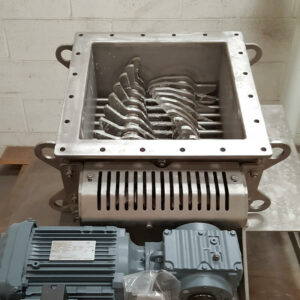

Lump-breaker with double crushing shaft

Lump-breaker with double crushing shaft

The lump breaker is an ideal solution to reduce the size grading of products tending to form lumps. Composed of a primary shaft and a secondary shaft rotating in opposite directions, this assembly allows the crushing of lumps that form during the transport of cohesive products.

It is available in different sizes, from the diameter 300 to the diameter 1000 mm and it can process a large quantity of product. The lump breaker with double crushing shaft allows flow of 40m³ of product per hour.

The lump breaker is integrated under the sealing and pre-transport system. Its limited height enables it to be easily integrated into processes where space is limited.

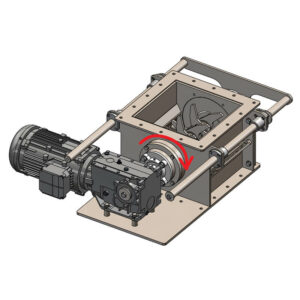

installation of an ISERCO single shaft lump breaker3D representation of a single shaft lump breaker - iserco

Lump-breaker with simple crushing shaft

Lump-breaker with simple crushing shaft

The lump breaker is used to crush a lumpy product so that it becomes fluid. Under no circumstances does the lump breaker act as a crusher and therefore cannot be considered as such.
The lump breaker is integrated under the sealing and pre-transport system. Its limited height enables it to be easily integrated into processes where space is limited.

It is available in different sizes, It is available in different sizes, from the diameter 300 to the diameter 1000 mm.
The lump-breaker with simple crushing shaft allows flow of 10m³ of product per hour.
